All New Y Series CU20027-YX1A
The Brightest VFD Module
Coming soon, CU20027-YX1A is bright and vibrant emissive display that is intended for applications where brightness was an issue.
CU20027-YX1A is capable of increasing it's brightness up to 400%. If brightness is what you need, CU20027-YX1A is currently the brightest Vacuum Fluorescent Display (VFD) module from Noritake Itron.
For applications intended for use in high ambient conditions, the display is recommended to have minimum of 5:1 contrast ratio. The use of filter is recommended to increase CU20027-YX1A's contrast ratio in such conditions.

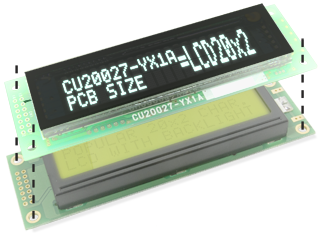

Same as 20x2 LCD footprint
CU20027-YX1A and popular 20x2 character LCD shares the same PCB size (116 mm x 37 mm or 4.57 in x 1.46 in) and mounting holes.
For the current popular 20x2 character LCD users or 20x2 VFD module
(Y Series, U version and 7000 Series) users, CU20027-YX1A requires no modification to the hardware and has character height of 7 mm.
Did we forget to mention CU20027-YX1A is the Noritake itron's brightest VFD module?

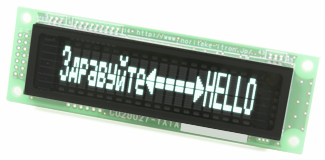

Character overload
Addition to the many international character sets and symbols built-in to CU20027-YX1A,
CU20027-YX1A also comes with 3 font sizes and alternate font style's for selected characters.
If the built-in font tables doesn't satisfy your needs, create your own with CU20027-YX1A's customizable font table (stores up to 256 characters).
Following are examples of countries supported by the international character sets built-in to CU20027-YX1A:
- United states
- Denmark
- France
- Germany
- Italy
- Japan (Katakana)
- Norway
- Spain
- Sweden
- Latin America
Download the CU20027-YX1A spec to see other supported countries.

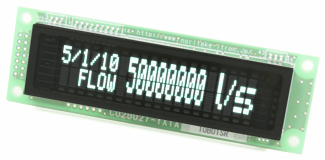

Example of 3 font sizes:

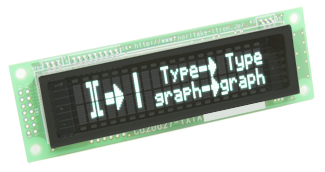

Examples of alternate font styles:
Download the full list of character's with alternate font style.

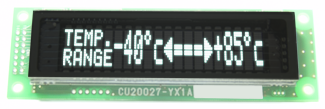

Display For All Environment
Whether if your product is going to be used in cold north pole or hot desert, CU20027-YX1A VFD modules can operate in the most demanding environment.
CU20027-YX1A temperature range: -40° C up to +85° C
LCD temperature range: -20° C up to +70° C
Unlike the LCD where the performance drops in subzero temperatures, CU20027-YX1A performs better in subzero temperatures.
How is that possible? Call us, we would be more than happy to explain why CU20027-YX1A performs better in subzero temperatures.
