Star Bright

  Quick Start Guide ►

  Remote Controller User Manual ►

• Bright VFD Technology
• Easy-to-read and ready-to-use
• Compact and slim design
• Stores 16 messages (each containing a set of texts), which can be selected by the remote
• Flexible text actions can be created easily.
• Low power (6W)

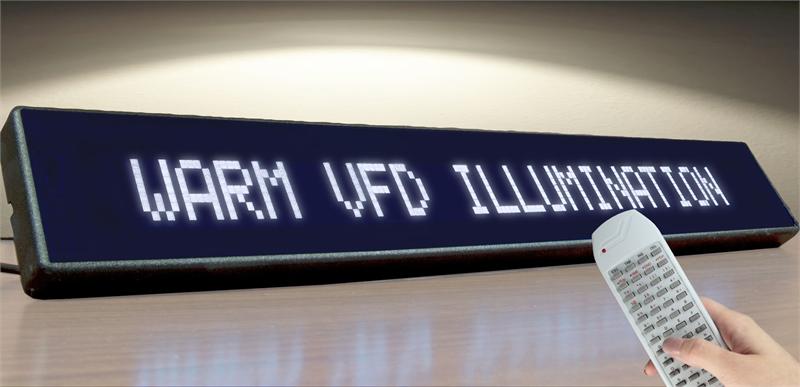

Star Bright is a bright, easy-to-read display for stores, exhibition showcases, and product guidance. The bright VFD display is packaged in a compact, slim and stylish case that fits anywhere.

The messages can be created by Star Bright Message Editor and can be sent from the PC via USB cable. The Star Bright Message Editor software offers various action commands, such as scrolling, blinking, and pixalating. You can check the messages and message actions in a simulator before sending them. The messages can be selected by the remote controller.

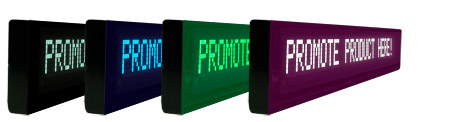

Display Color Part Number Aqua SCK128X8T-N024 Blue (Standard Color) SCK128X8T-N026 Green SCK128X8T-N023 White SCK128X8T-N025

• Format: 128x8 dots (21 Characters)
• Power Supply: AC Adaptor included
                            Display module uses only 6 W.
• Box Material: Black Polycarbonate
• Color Filter Material: Acrylic
• Weight: .95 lbs (430g)
• Cable: Length 6.6 feet (2 m).

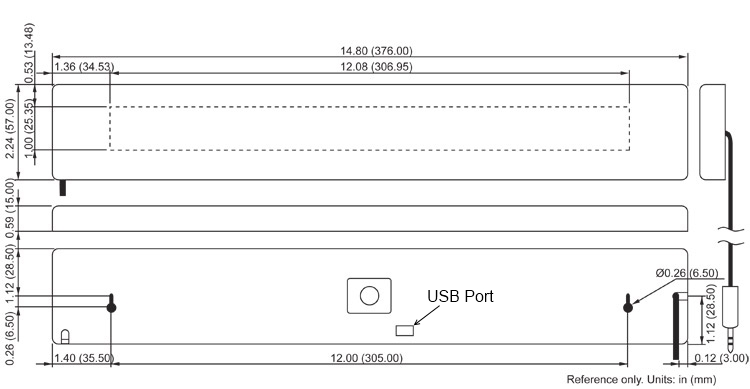

• Outline dimensions: W x H x D: 14.8 in. x 2.3 in. x .6 in.

Available character fonts
