Vacuum Fluorescent Display (VFD)
Acrylic color filters

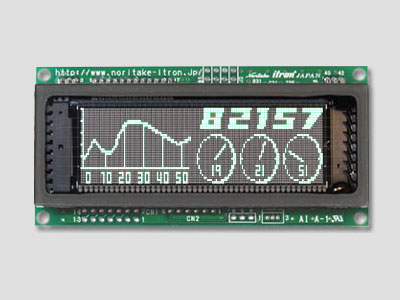

Not only color filters can alter the color of the Vacuum Fluorescent Display (VFD), color filters can increase the contrast ratio and act as a protective shield.
Request for a quote ►
Download the color filter spec ►
Noritake VFD Color Filter Simulator
Color filters available in various colors and sizes
| Applicable modules | Dimensions (mm) | Smoke gray | Rose | Aqua | Green | Blue |
|---|---|---|---|---|---|---|
| CU20025ECPB-W1J | 94.0 x 24.0 | F3-05-01-T | F3-17-01-T | F3-16-01-T | F3-12-01-T | F3-01-01-T |
| CU40025-UW6J GU280x16G-7000 GU280x16G-7003 |
164.0 x 24.0 | F3-05-02-T | F3-17-02-T | F3-16-02-T | F3-12-02-T | F3-01-02-T |
| CU16025ECPB-W6J GU112x16G-7000 GU112x16G-7003 GU112x16G-7900 |
75.0 x 22.0 | F3-05-03-T | F3-17-03-T | F3-16-03-T | F3-12-03-T | F3-01-03-T |
| GU128x32D-7000 GU128x32D-7003 GU128x32D-7100 GU128x32D-7900 |
83.0 x 24.0 | F3-05-04-T | F3-17-04-T | F3-16-04-T | F3-12-04-T | F3-01-04-T |
| GU140x16G-7000 GU140x16G-7003 GU140x16G-7100 GU140x16G-7900 GU140x16G-7903 |
95.0 x 22.0 | F3-05-05-T | F3-17-05-T | F3-16-05-T | F3-12-05-T | F3-01-05-T |
| CU20029ECPB-W1J GU140x16J-7000 GU140x16J-7003 |
129.0 x 31.0 | F3-05-06-T | F3-17-06-T | F3-16-06-T | F3-12-06-T | F3-01-06-T |
| CU20045-UW5J GU140x32F-7000 GU140x32F-7003 GU140x32F-7032 GU140x32F-7050 GU140x32F-7053 GU140x32F-7900 GU140x32F-7903 GU140x32F-7950 |
95.0 x 34.0 | F3-05-07-T | F3-17-07-T | F3-16-07-T | F3-12-07-T | F3-01-07-T |
| CU24025ECPB-W1J | 109.0 x 24.0 | F3-05-08-T | F3-17-08-T | F3-16-08-T | F3-12-08-T | F3-01-08-T |
| GU128x64D-7000/7003/7900 GU128x64D-7003 GU128x64D-7900 |
84.0 x 41.0 | F3-05-09-T | F3-17-09-T | F3-16-09-T | F3-12-09-T | F3-01-09-T |
| GU256x64D-7000/7900 GU256x64D-7900 GU256x64D-3900 |
144.0 x 42.0 | F3-05-10-T | F3-17-10-T | F3-16-10-T | F3-12-10-T | F3-01-10-T |
| GU256x128C-3900 |
115.0 x 60.0 | F3-05-11-T | F3-17-11-T | F3-16-11-T | F3-12-11-T | F3-01-11-T |
| GU256x64C-3900 |
109.0 x 31.0 | F3-05-12-T | F3-17-12-T | F3-16-12-T | F3-12-12-T | F3-01-12-T |
| CU20027-Y1A CU20027-Y100 CU24043-Y1A CU24043-Y100 |
97.0 x 26.0 | F3-05-15-T | F3-17-15-T | F3-16-15-T | F3-12-15-T | F3-01-15-T |
