Getting Started with GT-CP | Step 1. Connect Display
-
Touch works with gloves and water spillage.
Command Controlled TFT Touch Module
Compared with existing ITO based touch panels, our touch technology achieves superior sensitivity.
This includes its ability to operate with a cover glass and gloves even water spillage conditions.
-
Featured Products
GTWQ043C3B00PWA
Wide Operating Temp (-30 to +85 deg C) | Command Controlled 4.3 TFT Module with a Capacitive Touch Panel
GTWV050C3A00PA
Command Controlled 5 TFT Module which has a Capacitive Touch Panel
GTWV070C3B00PWA
Wide Operating Temp (-30 to +70 deg C) | Command Controlled 7 inch TFT Module with a Capacitive Touch Panel
Products Info
Specification
Part Number Resolution Display Size (inch) Display Area (mm) PCB Size (mm) Operating Temp Weight (g) Power Specification
DatasheetCAD
DataGTWQ043C3A00PA
480 x 272 4.3 95.04 x 53.87 108.00 x 80.00 -20°C to +70°C 100 5V / 440 mA
Hard
Soft
CAD DataGTWQ043C3B00PWA
480 x 272 4.3 95.04 x 53.86 108.00 x 80.00 -30°C to +85°C 100 5V / 410 mA
Hard
SoftN/A GTWV050C3A00PA
800 x 480 5 108.00 x 64.80 118.70 x 88.60 -20°C to +70°C 120 5V / 610 mA
Hard
Soft
CAD DataGTWV070C3A00PA
800 x 480 7 154.08 x 85.92 165.00 x 118.50 -20°C to +70°C 267 5V / 720 mA
Hard
Soft
CAD DataGTWV070C3A01PA
800 x 480 7 154.08 x 85.92 165.00 x 118.50 -20°C to +70°C 267 5V / 720 mA
Hard
SoftN/A GTWV070C3B00PWA
800 x 480 7 154.08 x 85.92 165.00 x 118.50 -30°C to +70°C 273 5V / 600 mA
Hard
SoftN/A NOTE
1. "N/A" means "Not Available".
2. The specification table above are summarised information, so please confirm further details on the respective detail specification.
Block Diagram
Getting Started with GT-CP
Features
More videos available at our video showcase.
Simple Commands
Command-based controls are easily driven by off-the-shelf MCUs. After the module is powered, you can immediately start sending character code commands!
Useful Functions
Selectable Touch Detection Method
GT-CP has four touch channels that can use three different touch detection modes. Other than the general X-Y coordinate method, sections of the touch screen can be treated as individual switches.
Program Macro Execution
Macro programs can be developed and saved onto the module and used without an external controller. These programs can also be set to execute upon system start-up.
26 General I/O Ports
Macro programs are also capable of controlling the module’s 26 general I/O ports. These ports can be used to control other peripheral devices.
Built in Fonts
The GU-TFT comes standard with both bitmap and outline fonts, along with font tables that include the English, Japanese, Chinese, and Korean languages. You can also register your own font.
Memory for Image Data
GU-TFT has 256MB of FROM to save image data, which is comparable to 305 screens.
Product Support
Long Term Support Policy
We are very aware of how important long-term support is for our customers and continue to strive to maintain strong supply chains with our GT products. Please refer to the Long Term Support Policy for more information.
Value Added Services
Optimize your manufacturing process by letting us take care of your connector, cable, conformal coating, filter, and control board needs.
Global Customer Support
Your needs are locally supported. Our sales offices are located worldwide and committed to providing the guidance, tools and technical resources directly.
No Minimum Order Quantity (MOQ)
We accept and ship orders from 1 pc. Our warehouse in Chicago can ship our products to customer in US/CANADA/MEXICO.
Development Support
Download Specification
Check out the display commands and electrical requirements from the full specifications below.
Select the desired specifications button to register and download.
Common Specification
Product specification
USB Communication and Drivers
As long as your application software or program can use Microsoft WinUSB (a Windows® Generic Driver), there is no additional driver required.
For Windows 7, you may need to download and install the latest WinUSB driver from the Microsoft website.
If the WinUSB driver is not applicable, our virtual COM port driver might work instead.
For the Linux environment, please follow the instructions "USB Communication Method on Linux"
Code Library
Quickly begin programming your own GUTFT application using an MSP-EXP430F5520LP or STM32f4Discovery controller with our code library. This library is written in C for the IAR Embedded Workbench.
Troubleshooting Guide
This guide shows solutions to frequently asked questions and common problems that users may encounter while using Noritake GT series modules.
Tutorial Video Playlist
GT-CP Beginner Tutorial Video Playlist ►
See more videos on our Video Showcase ►

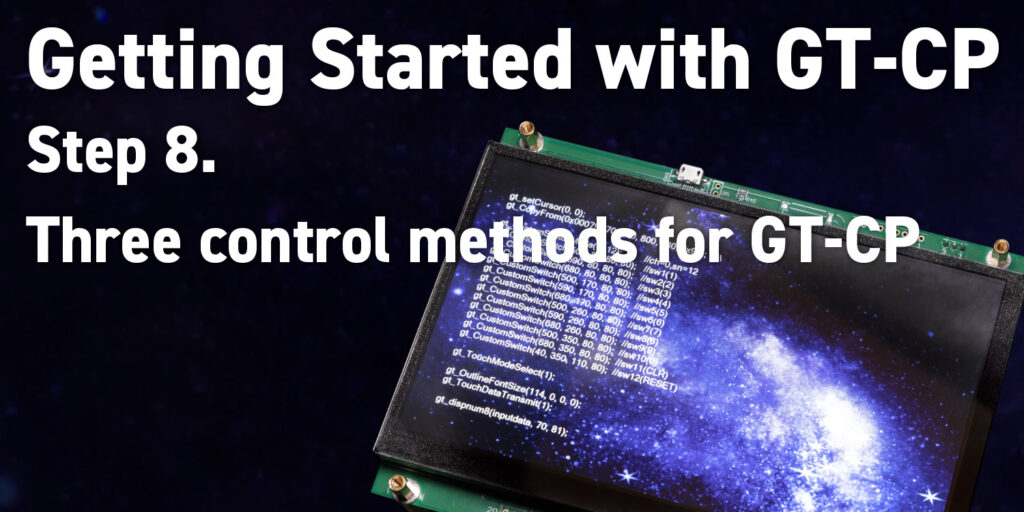

GT-CP First Steps
This collection of instruction documents are intended to guide the user through their first steps of using a GT-CP module. Currently, two “how to” guides are available: Connect to PC and Connect to Microcontroller.
Software Development Support Tool
We offer “GTOMP” which is the Windows® based development tool to support the creation of Graphical User Interface (GUI) prototypes, managing the image files on the memory, adjusting touch sensitivity, and more.
Note: The GTOMP is our GTOP upgrade and combines our GT-Packer and GTO Tool into a single platform.
GT-CP Communication on Linux
For USB communication, we have used libusb.h (an open source library) and a generic USB driver. This web-page describes these methods in detail and provides example code to get you started.
Standalone Program Function
We offer “MSousi” Programming Editor and Complier for the Noritake PMacro language which can make a standalone application or support your host board.
Application Note
This document describes the detail of the GT-CP module including principal of the FLETAS® touch screen, case study of sensitivity adjustment, configuration of the command-set, interface example, font selection, programing example and more usable information to evaluate the module.
Production Support Tool
We support the GT-CP memory duplication process for your final projects created with our GTOMP tool or other software and copy them to a new GT-CP module.
The GT-Clone is a memory duplication tool for the GT-CP module and only uses “Read Memory” and “Write Memory” two steps for the cloning process.
GT Product Features
FLETAS® Metallized Projective Capacitive Touch
Two metallized layers(x-y) are overlaid onto an LCD screen. These thin-film metallic panels have a lower impedance than typical ITO** touch panels. This allows for a higher S/N ratio, wider touch sense margin, and better overall sensitivity.
Learn more ►
** ITO = Indium Tin Oxide
High Brightness
Each module has a high brightness TFT ranging from 950-1000cd/m2*.
* Actual brightness range: 810-850cd/m2.
Stable Operation
Variable projection radius. Tested up to 5mm acrylic and *15mm glass overlay without affecting touch response under factory conditions.
*GT800X480A-1303P
Multi-Touch
Allow for gesture control and handles up to 10 concurrent touches at a time.
Easily Cleaned
Glass surface is damage-resistant and tolerant to chemical cleaning solutions.
