800 Graphic Series with Built-In Drivers

click on model for schematics...

vacuum fluorescent displays

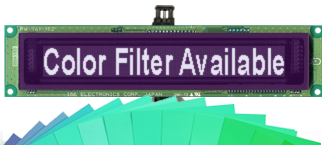

Acrylic color filters available in various colors and sizes

Learn more ►
Request a quote ►

Featuring Chip in Glass Technology
Display Text & Graphics
Very High Brightness
Widest Viewing Angles

Wide Temperature Range -40°C to +85°C
Displays All Languages

Compare 800 Series VFD modules with other series

Vacuum fluorescent display (VFD) module selection guide ►

Vacuum fluorescent display (VFD) module selection guide

Part Number	# of Dots	# of Characters	Dot Pitch (mm)	Dot Size (mm)	Display Area W x H (mm)	PCB Size W x H (mm)	Power (All Dots On) Typ	Notes	Datasheet	Font Tables
GU128x32-800B	128 x 32	4 x 21	0.65 x 0.65	0.5 x 0.5	83.05 x 20.65	130 x 38.5	5 / 450	-		-
GU128x32-820B	128 x 32	4 x 21	0.65 x 0.65	0.5 x 0.5	83.05 x 20.65	130 x 38.5	5 / 450	-		Japanese
GU128x64-800B	128 x 64	8 x 21	0.65 x 0.65	0.5 x 0.5	83.05 x 41.45	140 x 68	5 / 700	-		-
GU128x64-820B	128 x 64	8 x 21	0.65 x 0.65	0.5 x 0.5	83.05 x 41.45	140 x 68	5 / 700	-		Japanese
GU128x64-8400B	128 x 64	8 x 21	0.65 x 0.65	0.5 x 0.5	83.05 x 41.45	140 x 68	5 / 700	-		Simplified Chinese
GU160x32-800B	160 x 32	4 x 26	0.635 x 0.635	0.485 x 0.485	101.45 x 20.17	154 x 45	5 / 550	-		-
GU160x32-820B	160 x 32	4 x 26	0.635 x 0.635	0.485 x 0.485	101.45 x 20.17	154 x 45	5 / 550	-		Japanese
GU160x32-8300B	160 x 32	4 x 26	0.635 x 0.635	0.485 x 0.485	101.45 x 20.17	154 x 45	5 / 550	-		Korean
GU160x32-8400B	160 x 32	4 x 26	0.635 x 0.635	0.485 x 0.485	101.45 x 20.17	154 x 45	5 / 550	-		Simlified Chinese
GU256x32-800A	256 x 32	4 x 42	0.65 x 0.65	0.5 x 0.5	166.25 x 20.65	220 x 50	5 / 750	-		-
GU256x32-8400B	256 x 32	4 x 42	0.65 x 0.65	0.5 x 0.5	166.25 x 20.65	220 x 50	5 / 750	-		Simplified Chinese
