Noritake VFD module code library downloads

GU-3000

GU-7000

CU-U

CU-Y

GU-U100

GU-3000 Evaluation code library

Noritake_VFD_GU3000

This library is written in C++ for AVR Studio 4, Atmel® Studio 6, and Linux.

This library provides access to the base functionality of the GU-3000B series modules using an Atmel® 8-bit AVR microcontroller or a Linux system.

For Atmel® AVR, code that implements the RS-232 interface to communicate with the module is included. For Linux, code to set up a serial device driver is included.

Download ►

Demo files

Noritake_VFD_GU3000_HelloDemo

This demo is written in C++ for AVR Studio 4, Atmel® Studio 6, and Linux.

This project demonstrates how to use the Noritake_VFD_GU3000 code library to print a simple message to the Noritake GU-3000 Vacuum Fluorescent Display (VFD) modules.

NOTE: This demo requires Noritake_VFD_GU3000 code library. Please download the latest version before use.

Download ►

Noritake_VFD_GU3000_BrightnessDemo

This demo is written in C++ for AVR Studio 4, Atmel® Studio 6, and Linux.

This project demonstrates how to use the Noritake_VFD_GU3000 code library to change the brightness of the screen on the Noritake GU-3000 Vacuum Fluorescent

NOTE: This demo requires Noritake_VFD_GU3000 code library. Please download the latest version before use.

Download ►

GU-7000 code library

Noritake_VFD_GU7000

This library is written in C++ for AVR Studio 4, Atmel® Studio 6, and Linux.

This library provides access to the base functionality of the GU-7000 series modules using 8-bit Atmel® AVR or Linux.
This library is intended for use with the following modules:
GU***X***-7***


Download ►

Demo files

Noritake_VFD_GU7000_LargeTextDemo

This library is written in C++ for AVR Studio 4, Atmel® Studio 6, and Linux.

Noritake_VFD_GU7000_LargeTextDemo demonstrates how to use the Noritake_VFD_GU7000 code library to change the font size on the Noritake GU-7000 Vacuum Fluorescent Display (VFD) modules.

This project displays 1x1 in the normal sized font, 2x2 in a font that is twice as wide and twice as tall, and 3x2 in a font that is three times as wide and twice as tall.

NOTE: This demo requires Noritake_VFD_GU7000 code library. Please download the latest version before use.


Download ►

Noritake_VFD_GU7000_ImageDemo

This library is written in C++ for AVR Studio 4, Atmel® Studio 6, and Linux.

Noritake_VFD_GU7000_ImageDemo demonstrates how to use the Noritake_VFD_GU7000 code library to display bitmap images on the Noritake GU-7000 Vacuum Fluorescent Display (VFD) modules.

This project displays an antenna icon on the screen. This demonstration will store the image in the FlashRom of the VFD module. To confirm if your VFD module is applicable, refer to the specification.

NOTE: This demo requires Noritake_VFD_GU7000 code library. Please download the latest version before use.


Download ►

Support Tools

Bitmap Image Tool for GU-7000

The support tools generate codes for the C++ language and AVR Studio 4.

Bitmap Image Tool for GU-7000 converts images for GU-7000 code library and provides AVR Studio 4 example projects. This application supports .bmp, .jpeg, .gif, .tiff, and .png files.

Download Page ►

Text Encoding Converter for GU-7000

The support tools generate codes for the C++ language and AVR Studio 4.

Text Encoding Converter for GU-7000 converts text written in the text box to selected character set for GU-7000 code library.

Download Page ►

Bitmap Image Loader for GU-7900

The support tools generate codes for the C++ language and AVR Studio 4 / Atmel® Studio 6.

The Bitmap Image Loader for GU-7900 stores images in GU-7900s’ onboard Flash ROM.

Download Page ►


CU-U code library

Noritake_VFD_CUU

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

This library provides access to the base functionality of the CU-U series modules using 8-bit Atmel® AVR.
This library is intended for use with the following modules and BC-VFD:
CU******-UW**
CU******-UX**
DS2045G

Download ►

Add-on library

Noritake_VFD_CUU_Graph

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

Noritake_VFD_CUU_Graph code library takes the input from a source and displays horizontal bar graphs. Various display options available.

NOTE: The Noritake_Graph_CUU code library requires Noritake_VFD_CUU code library. Please download the latest version before use.


Download ►

Demo files

Noritake_VFD_CUU_BrightnessDemo

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

The Noritake_VFD_CUU_BrightnessDemo demonstrates how to change the brightness of the CU-U VFD modules.

NOTE: This demo requires Noritake_VFD_CUU code library. Please download the latest version before use.


Download ►

Noritake_VFD_CUU_Graph_BarGraphDemo

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

The Noritake_VFD_CUU_Graph_BarGraphDemo demonstrates how to display horizontal bar graphs on the CU-U VFD modules.

NOTE: This demo requires Noritake_VFD_CUU code library and Noritake_VFD_CUU_Graph code library. Please download the latest version before use.


Download ►


CU-Y code library

Noritake_VFD_CUY

This library is written in C++ for AVR Studio 4, Atmel® Studio 6, and Linux.

This library provides access to the base functionality of the CU-Y series modules using 8-bit Atmel® AVR.
This library is intended for use with the following modules:
CU*****-Y***

Download ►

Demo files

Noritake_VFD_CUY_MenuDemo

This library is written in C++ for AVR Studio 4, Atmel® Studio 6, and Linux.

The Noritake_VFD_CUY_MenuDemo demonstrates how to make a menu for the CU-Y VFD modules.

This project creates a menu screen showing 5 categories: PRESSURE, RPM, MAX FLOW, TOTAL TIME, and CURRENT. The currently selected category will be brighter and underlined.

This code works with 24x6, 24x4, and 22x4 character format.

NOTE: This demo requires Noritake_VFD_CUY code library. Please download the latest version before use.


Download ►


GU-U100 code library

Noritake_VFD_GUU100

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

This library provides access to the base functionality of the GU-U100 series modules using 8-bit Atmel® AVR.
This library is intended for use with the following modules:
GU*******-U100

* Updated: Improved data read function (2013-1-15)

Download ►

Demo files

Noritake_VFD_GUU100_EqualizerDemo

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

The Noritake_VFD_GUU100 _EqualizerDemo demonstrates how to use the Noritake_VFD_GUU100 code library to display bitmap images on the Noritake GU128X64E-U100 Vacuum Fluorescent Display (VFD) module.

The project displays equalizer bar demo.

NOTE: This demo requires Noritake_VFD_GUU100 code library. Please download the latest version before use.

Download ►

Noritake_VFD_GUU100_Font Demo

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

The Noritake_VFD_GUU100 _Font Demo demonstrates how to use the Noritake_VFD_GUU100 code library to display 5x8 dots font on the Noritake GU128X64E-U100 Vacuum Fluorescent Display (VFD) module.

The demo file includes 2 types of 5x8 dots font tables.

NOTE: This demo requires Noritake_VFD_GUU100 code library. Please download the latest version before use.

Download ►

Noritake_VFD_GUU100_Large Number Demo

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

The Noritake_VFD_GUU100 _Large Number Demo demonstrates how to use the Noritake_VFD_GUU100 code library to display larger numbers (0 to 9) font on the Noritake GU128X64E-U100 Vacuum Fluorescent Display (VFD) module.

NOTE: This demo requires Noritake_VFD_GUU100 code library. Please download the latest version before use.

Download ►

Bitmap Image Tool for GU-U100

This library is written in C++ for AVR Studio 4 and Atmel® Studio 6.

Select the bitmap image to convert into horizontal or vertical GU-U100 format data.

Bitmap image tool for GU-U100 converts image for GU-U100 code library and provide AVR Studio 4/Atmel® Studio 6 example project.

This application supports .bmp, .jpeg, .gif, .tiff, and .png file. NOTE: This demo requires Noritake_VFD_GUU100 code library. Please download the latest version before use.

Download ►

Getting Started

Step 1

Noritake VFD module code library

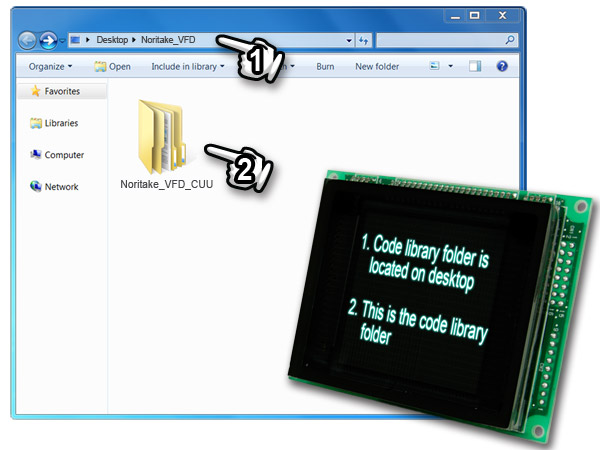

Unzip the library file to your work area.

Step 2

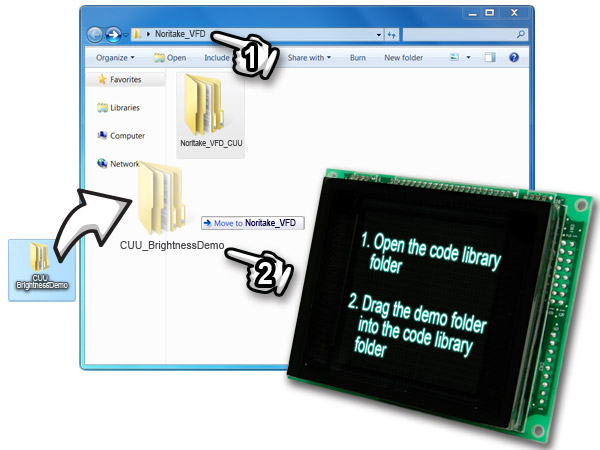

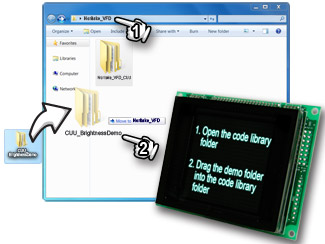

Move the Noritake VFD module code library demo into code library's folder

Extract the demo folder into the folder for the series (e.g. Noritake_VFD_CUU)

Step 3

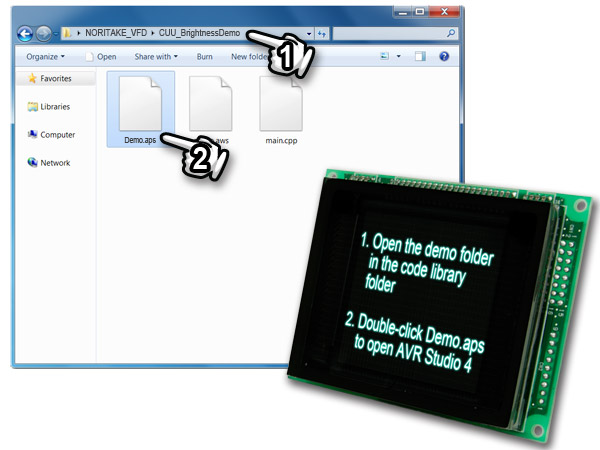

Open the Noritake VFD module code library's demo file

Set the configuration options in "config.h"  included with the series code library. Open the Demo.aps project file with AVR Studio 4 or Demo.atsln with Atmel® Studio 6

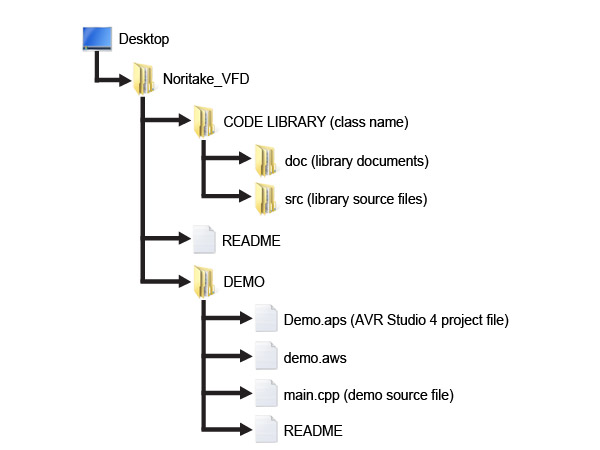

Structure of the code library with demo

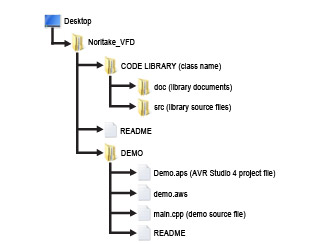

Structure of the Noritake VFD module code library with demo

Please make sure the Demo or supporting code library is in the same directory as the series code library
