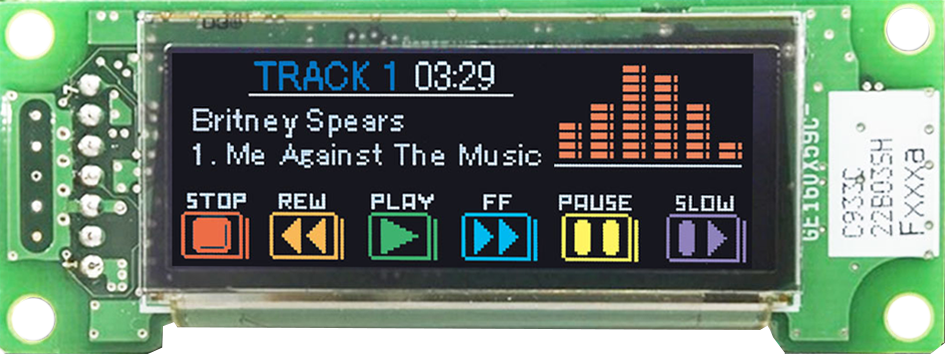

GE160X59C-C933C
OLED Display Module
- Datasheet
- GE160X59C-C933C
- Character Fonts Specification: International Fonts (5x7,8x16dots Fonts)
- Character Fonts Specification: Simplified Chinese (16x16dots Fonts)
- Character Fonts Specification: Traditional Chinese (16x16dots Fonts)
- Character Fonts Specification: Japanese (JIS, 32x32dots Fonts)
- Character Fonts Specification: Korean (16x16dots Fonts)
- Design Resources
- Image Data Flashing Tool for FROM [Image Date Generator]
- TT-99-3102 | Display Module Products Reliability Test Conditions
- TT-98-3413 | Module Products Quality Specifications
- Code Library
- Arduino Code Library Quick Start Guide
- Noritake Screen Layout Designer
- Text Encoding Converter for GU-7000
- Bitmap Image Tool for GU-7000
- GUD10K
- Specification
-
- Character Number
- 22 x 7
- Resolution
- 160 x 59
- Display Size (inch)
- 2.05″
- Display Area (mm)
- 48.93 x 18.03
- Dot Size (mm)
- Not specified
- Dot Pitch (mm)
- 0.306 x 0.306
- Character Size (mm)
- 1.53 x 2.14
- PCB Size (mm)
- 80.00 x 30.00
- Operating Temp
- -30°C to +70°C
- Storage Temp
- -40°C to +80°C
- Weight (g)
- 13
- Power
- 3.3V / 245 mA
- Power Supply
- 3.3V
- Interface
- Serial interface (+3.3V level C-MOS Synchronous, Asynchronous, SPI or I2C, selectable)
- Font Table
- ASCII,Extended ASCII,International
- Asian Font Table
- Simplified Chinese, Traditional Chinese, Japanese, Korean
- Character Format
- 5 x 7, 8 x 16, 16 x 16
