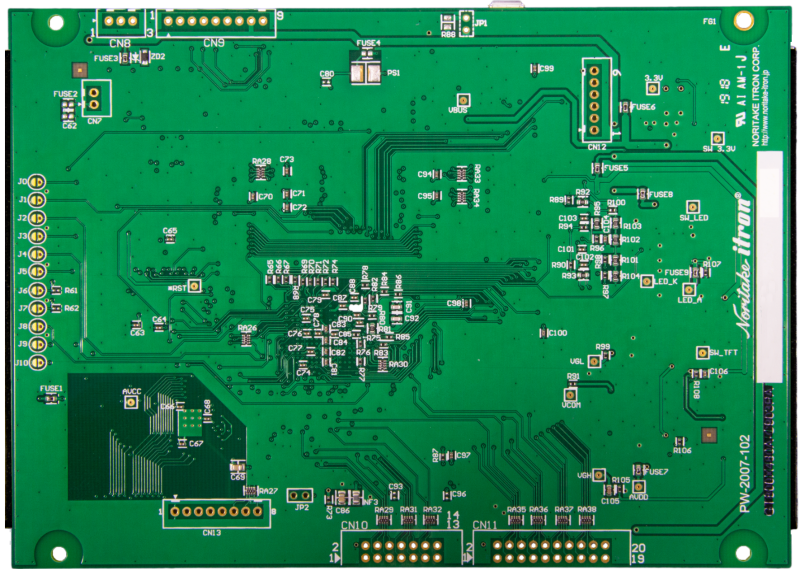

GTWV070S3A00P

GUI Design Tool Suported 7" Capacitive Touch TFT Module.

Datasheet: GTWV070S3A00P Hardware Specification; GT-SP series Basic Function Software Specification

Design Resources: GT-SP Series Firmware; GT-SP user guide Part 3 (Host Control Edition); GT-SP user guide Part 2 (How to Use Design Tools); GT-SP user guide Part 1 (Introduction); GT Design Stuido; TT-17-3301 | Glass Panel Products Quality Specification; TT-98-3413 | Module Products Quality Specifications

Specification

Resolution: 800 x 480
Display Size (inch): 7
Display Area (mm): 154.08 x 85.92 (7")
PCB Size (mm): 165.00 x 118.50
Operating Temp: -20°C to +70°C
Storage Temp: -30°C to +80°C
Weight (g): 267
Power Supply: 5V
Interface: CMOS asynchronous serial, USB, UART
Font Table: ASCII,Euro,JIS
Asian Font Table: -
Character Format: 6X8, 8x16, 12x24, 16x32
Touch Type: Mutual Projective Capacitive
Touch Pattern: X-Y Coordination
Power: 5V / 720 mA
Brightness Typ. (cd/m²): 850
Specification

GT-SP Series
