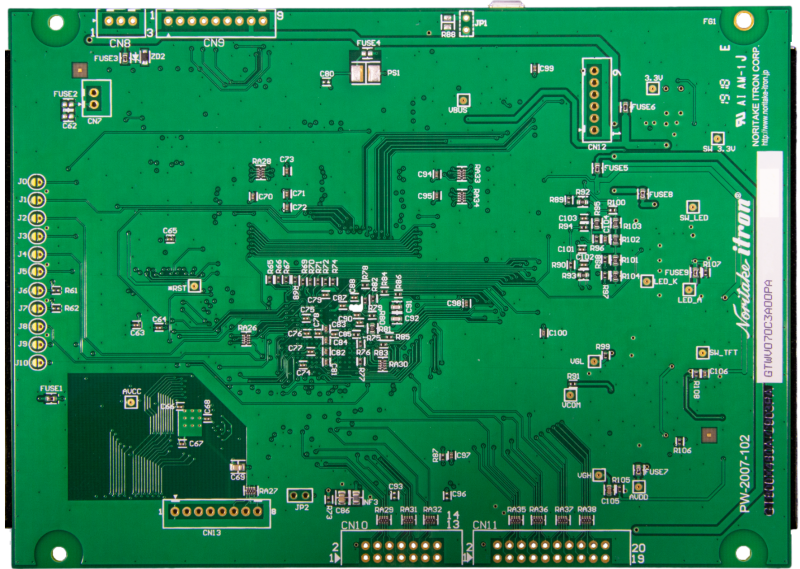

GTWV070C3A00PA

Command Controlled 7 TFT Module which has a Capacitive Touch Panel

Datasheet: GTWV070C3A00PA; GT-CP Series General Software Spec.; GU-TFT (GT-C9XXP) Series Program Macro; Character Fonts Specification: International Fonts (6x8,8x16,12x24,16x32dots Fonts); Character Fonts Specification: Simplified Chinese (16x16dots Fonts); Character Fonts Specification: Traditional Chinese (16x16dots Fonts); Character Fonts Specification: Japanese (JIS, 16x16dots Fonts); Character Fonts Specification: Japanese (JIS, 32x32dots Fonts); Character Fonts Specification: Korean (16x16dots Fonts)

Downloads: 3D CAD Data

Design Resources: GT-Clone; Touch Screen Sensitivity Adjustment Guide; GTOMP (BETA) | New GT-CP Support Tool Suite; GT-CP Communication on Linux; GTOP | GT-CP Support Tool Suite [Deprecated]; Getting Started with GT-CP： Connect to Micro-controller (E-M-0199-xx); GT-CP Series Application Note; Getting Started with GT-CP： Connect to PC (E-M-0198-xx); TT-17-3301 | Glass Panel Products Quality Specification; GT Packer [Deprecated]; TT-12-3001 | Touch Switch/Panel Reliability Test Conditions; GTO TOOL [Deprecated]; TT-99-3102 | Display Module Products Reliability Test Conditions; TT-98-3413 | Module Products Quality Specifications; STM32Discovery Code Library [Deprecated]; MSP430 Code Library; Msousi: Program Macro Editor Compiler; GU-TFT Tool [Deprecated]; GU TFT Driver [Deprecated]

Specification

Resolution: 800 x 480
Display Size (inch): 7
Display Area (mm): 154.08 x 85.92 (7")
PCB Size (mm): 165.00 x 118.50
Operating Temp: -20°C to +70°C
Storage Temp: -30°C to +80°C
Weight (g): 267
Power Supply: 5V
Interface: CMOS asynchronous serial,SPI,I2C,USB
Font Table: ASCII,Extended ASCII,International
Asian Font Table: Chinese,Japanese,Korean
Character Format: 6X8, 8x16, 12x24, 16x16, 16x32, 32x32
Touch Type: Mutual Projective Capacitive
Touch Pattern: X-Y Coordination
Power: 5V / 720 mA
Brightness Typ. (cd/m²): 850
